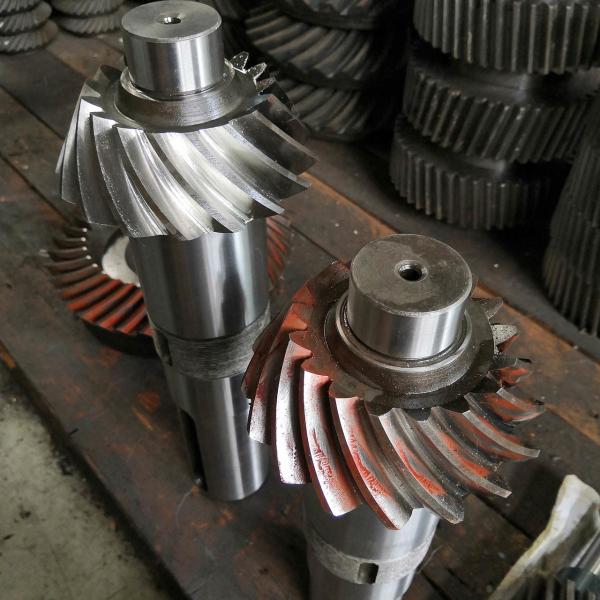

4.5M Gear Grinding Spiral Bevel Gears SAE 4320 Helical Transmission Gears

Name: 45M Gear Grinding Spiral Bevel Gears SAE 4320 Helical Transmission Gears
Brand: YIZGEAR
Price: 300 USD

Quality 4.5M Gear Grinding Spiral Bevel Gears SAE 4320 Helical Transmission Gears for sale

Brand Name : YIZGEAR

Model Number : SB2207003

Place of Origin : CHINA

MOQ : 2 Sets

Price : $300/ Piece

Payment Terms : T/T, L/C

Supply Ability : 500 Sets/Month

Delivery Time : 62 Days

Packaging Details : Plywood Crate

Modue : 4.5

Direction : Left-Hand

Press angle : 20°

Hardness : 58-62 HRC

Heat Treatment : Carburizing

Quality Grade : ISO 6 Grade AGMA 11 Grade

Contact Now

4.5M Gleason Type Gear Grinding Spiral Bevel Gear For Gearbox

1) Description of spiral bevel gear

Spiral bevel gear is a bevel gear with helical teeth. The main application of this is in a vehicle differential.

Where the direction of drive from the drive shaft must be turned 90° to drive the wheels. The helical design

produces less vibration and noise than conventional straigh-cut or spur-cut gear with straight teeth.

2) Features of spiral bevel gear

Spiral bevel gear set should be replaced in pairs. Both the left hand and right hand gears should be

replaced together.

Technical Specifications

Parameter	Specification
Custom Made	Available
Gear Profile Type	Gleason
Manufacturing Process	Gear Milling & Gear Teeth Grinding
Teeth Grinding	Included
Module (M)	Custom
Number of Teeth (Z)	Custom
Pressure Angle (α)	Custom
Lead Angle	Custom
Accuracy Grade	ISO 6 Grade/ AGMA 11Grade
Heat Treatment	Carburizing/Cement Quenching
Surface Hardness	58-62HRC

Steel Code Grades Comparison

CHINA/GB	ISO	ГΟСТ	ASTM	JIS	DIN
45	C45E4	45	1045	S45C	CK45
40Cr	41Cr4	40X	5140	SCr440	41Cr4
20CrMo	18CrMo4	20ХМ	4118	SCM22	25CrMo4
42CrMo	42CrMo4	38XM	4140	SCM440	42CrMo4
20CrMnTi		18XГT		SMK22
20Cr2Ni4		20X2H4A
20CrNiMo	20CrNiMo2	20XHM	8720	SNCM220	21NiCrMo2
40CrNiMoA		40XH2MA/40XHMA	4340	SNCM439	40NiCrMo6/36NiCrMo4
20CrNi2Mo	20NiCrMo7	20XH2MA	4320	SNCM420

Production Equipment

4.5M Gear Grinding Spiral Bevel Gears SAE 4320 Helical Transmission Gears

Production Process

4.5M Gear Grinding Spiral Bevel Gears SAE 4320 Helical Transmission Gears
