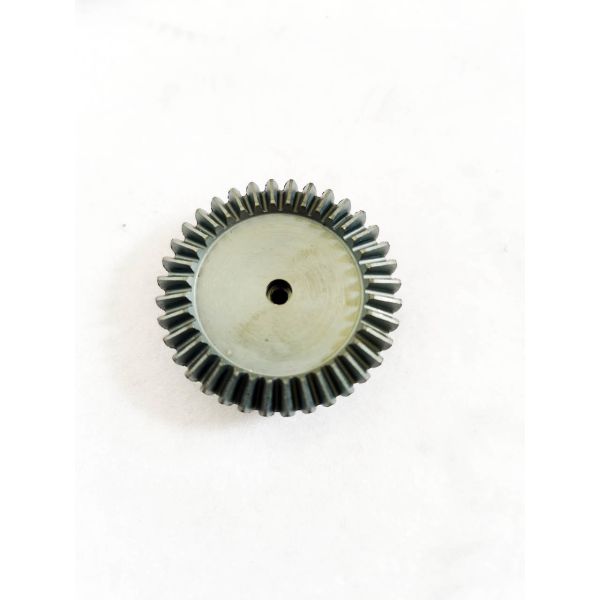

0.5 Module 43T Transmission Straight Bevel Gear Micro Straight Conical

Brand Name : YZGEAR

Model Number : BG22123105

Place of Origin : CHINA

MOQ : 1 Set

Price : $300.0/Set

Payment Terms : L/C, D/P, T/T, Western Union

Supply Ability : 800 Sets/Month

Delivery Time : 55 Days

Packaging Details : Plywood Crate

Module : 0.5

Teeth Number : 44T

Material : 45#

Heat Treatment : Induction Hardened

Hardness : 45-50 HRC

Quality Grade : ISO 8-9 Grade

Contact Now

0.5 Module 43T Micro Straight Conical Gear Transmission Gear

1) Applications of Straight Bevel Gear

Machine tools, power tools, printing presses, gearboxes.

2) Description of Straight Bevel Gear

Bevel gears are used to connect two shafts whose axes intersect and whose pitch surfaces are cones.

The teeth of the bevel gear are cut along the pitch cone.

The straight bevel gear is a simple form of bevel gear that has straight teeth.

Technical Specifications
Parameter Specification
Custom Made Available
Gear Profile Type Gleason
Manufacturing Process Gear Shaping
Teeth Grinding Included
Module (M) 0.5
Number of Teeth (Z) 43
Pressure Angle (α) 20°
Lead Angle Custom
Accuracy Grade ISO 8-9 Grade
Heat Treatment Carburizing/Induction Hardending
Surface Hardness Pinion 58-62 HRC/Gear 50-55 HRC
Steel Code Grades Comparison
CHINA/GB ISO ГΟСТ ASTM JIS DIN
45 C45E4 45 1045 S45C CK45
40Cr 41Cr4 40X 5140 SCr440 41Cr4
20CrMo 18CrMo4 20ХМ 4118 SCM22 25CrMo4
42CrMo 42CrMo4 38XM 4140 SCM440 42CrMo4
20CrMnTi 18XГT SMK22
20Cr2Ni4 20X2H4A
20CrNiMo 20CrNiMo2 20XHM 8720 SNCM220 21NiCrMo2
40CrNiMoA 40XH2MA/40XHMA 4340 SNCM439 40NiCrMo6/36NiCrMo4
20CrNi2Mo 20NiCrMo7 20XH2MA 4320 SNCM420
Production Equipment

0.5 Module 43T Transmission Straight Bevel Gear Micro Straight Conical

Manufacturing Process

0.5 Module 43T Transmission Straight Bevel Gear Micro Straight Conical
